What is Programmable DC Power Supply Variable?

The Programmable power supplies, known as digitally controlled power sources, offer precise and adjustable voltage and current levels, enabling precise control over the desired parameters. Frequently employed in the testing and development of electronic devices, these DC power supplies play a crucial role. When selecting the ideal programmable power supply for your requirements, KUAIQU programmable DC power supplies emerge as a premier option.

Is Programmable the Same as Variable in DC Power Supplies?

Compared to ordinary variable DC power supplies, programmable DC power supplies offer more comprehensive adjustment and remote control capabilities. While a variable power supply may require adjustments through knobs, a programmable power supply can be operated through computer programs, enabling more sophisticated control. KUAIQU provides the programmable DC power supply variable, bringing convenience to your various applications.

How do Programmable Variable DC Power Supplies Work?

The transformer serves the dual purpose of galvanically isolating the AC line from the rest of the circuit and adjusting the voltage, either stepping it down or up, based on the targeted maximum DC output voltage.

The AC voltage from the transformer is transformed into unipolar AC voltage by the rectifier circuit block. Subsequently, the filter block converts this unipolar AC into a DC voltage with a ripple effect. The regulator then fine-tunes the output voltage to the desired level and adds further filtering, ensuring a constant DC voltage.

What is CC and CV in Variable DC Power Supply Programmable?

The programmable DC power supply variable operates in two modes: Constant Voltage (CV) and Constant Current (CC). In the Constant Voltage (CV) mode, the DC power supply manages the output voltage based on the configured settings, while in Constant Current (CC) mode, the power supply controls the current. The operation mode, whether Constant Voltage (CV) or Constant Current (CC), is determined by a combination of user settings and the resistance of the load.

 The typical operating state of DC power supplies is CV mode, wherein voltage control is exercised. The user's voltage setting determines a constant output voltage, while the output current is contingent upon the load impedance.

 CC mode is generally recognized as a safety mode. Within CC mode, the output current remains constant and is dictated by the user's specified current limit. Meanwhile, the voltage is contingent upon the impedance of the load.

Note: If the programmable DC power supply operate in CV mode and surpass the user's predefined current limit, it will autonomously transition to CC mode. Additionally, the power supply has the capability to revert to CV mode if the load current falls below the set current limit.

Variable Programmable DC Power Supply Applications

The DC programmable power supply finds application in various domains, including but not limited to laboratory tasks, testing and measurement, research and development, and product manufacturing. Below are specific applications within these domains.

Laboratory Work
The programmable DC power supply laboratory functions as a crucial tool in laboratory settings, facilitating the examination of electronic components, prototyping circuits, and conducting materials science experiments. Additionally, it holds substantial importance in educational settings by offering practical learning opportunities.

Test & Measurement
Within test and measurement applications, the lab programmable DC power supply is employed to conduct functional tests on electronic devices, perform environmental testing, and calibrate instruments. This ensures precise measurements and enhances product quality.

Research & Development
During product development, program developers and researchers depend on the programmable DC variable power supply, especially when conducting battery research, developing sensors, and testing novel technologies to assess their performance and behavior.

Product Manufacturing
Integrated into product manufacturing, programmable power supplies are essential for quality control, automated testing, end-of-line testing, and production debugging. This guarantees that products adhere to performance standards before they are delivered to consumers.

Pick the Right Programmable Variable Power Supply

Selecting the appropriate programmable power supply DC is crucial for maximizing the effectiveness of your application. By making the correct choice in DC power supplies, you not only enhance system performance and efficiency but also facilitate smoother product validation. Don't be daunted by the array of programmable dc power supplies. Here are some helpful tips to consider when making your choice.

Output Stability
Output stability denotes the capability of a programmable power supply to uphold steady voltage and current levels when subjected to fluctuating load conditions over an extended period. For applications requiring high precision and stable power output, a programmable power supply with exceptional stability is imperative. Thoughtful assessment of output stability will help ensure that the selected DC power supply operates in an an efficient and reliable manner.

Current & Voltage Range
Selecting a programmable DC power supply involves determining the voltage and current required for a given application. The output range must satisfy the demands of testing or required power specifications. It is crucial for the programmable power supply variable to deliver both maximum and minimum values without compromising precision or safety. Selecting a DC power supply with excessively high voltage or current may negatively affect the accuracy of the output.

Cooling Design
This feature guarantees effective heat dissipation, ensuring stable performance even during extended periods of operation. The incorporation of a robust cooling system enhances the reliability and longevity of the DC programmable power supply, making it ideal for applications demanding sustained and precise power delivery. We strongly recommend purchasing a programmable power supply with a cooling design.

Protection Measure
Safety stands as a paramount consideration for a DC power supply, with fundamental features including protection against overvoltage, overcurrent, and overtemperature. These measures prevent damage to the power supply and load during input abnormalities, reducing losses. ETOMMENS programmable power supplies prioritize safety by incorporating multiple protections, enhancing safety and extending service life.

Easy Setup
The easy setup of a DC power supply programmable allows for more dedicated time to testing and monitoring applications. Our DC power supplies often incorporate intuitive features, enabling a swift and effective setup. Models equipped with distinct voltage and current controls, along with fine-tuning capabilities, offer enhanced precision in operation.

Switching or Linear
Programmable switching regulated DC bench power supply are known for their efficiency and compact size, making them suitable for applications where space is a concern. On the other hand, programmable dc power supply linear provide high stability and low output noise, making them ideal for applications requiring high precision and low interference. You can choose the appropriate programmable power supply based on your application needs.

By keeping these considerations in mind, you can make an informed choice and choose the programmable DC power supply that best meets your specific needs, ensuring stable power delivery.

How to Use DC Programmable Power Supply?

A programmable DC power supply is a versatile device designed for providing controlled and adjustable DC voltage to electronic circuits, or devices. To effectively use a programmable DC power supply, follow these steps:

 1.Select a programmable power supply capable of delivering sufficient output power for your requirements.

 2.Establish a connection between the power supply and your device. Ensure correct polarity before activating the power supply, as incorrect polarity may result in equipment damage.

 3.Power on the DC power supply and gradually raise the voltage until the desired level is reached.

 4.Upon reaching the desired voltage, you can commence the operation of your device.

 5.Upon completion, power down the supply and disconnect it from your device.

Follow these straightforward steps, and you will be able to utilize a DC power supply programmable correctly. Always exercise caution when dealing with electricity, and consult a professional if you have any uncertainties.

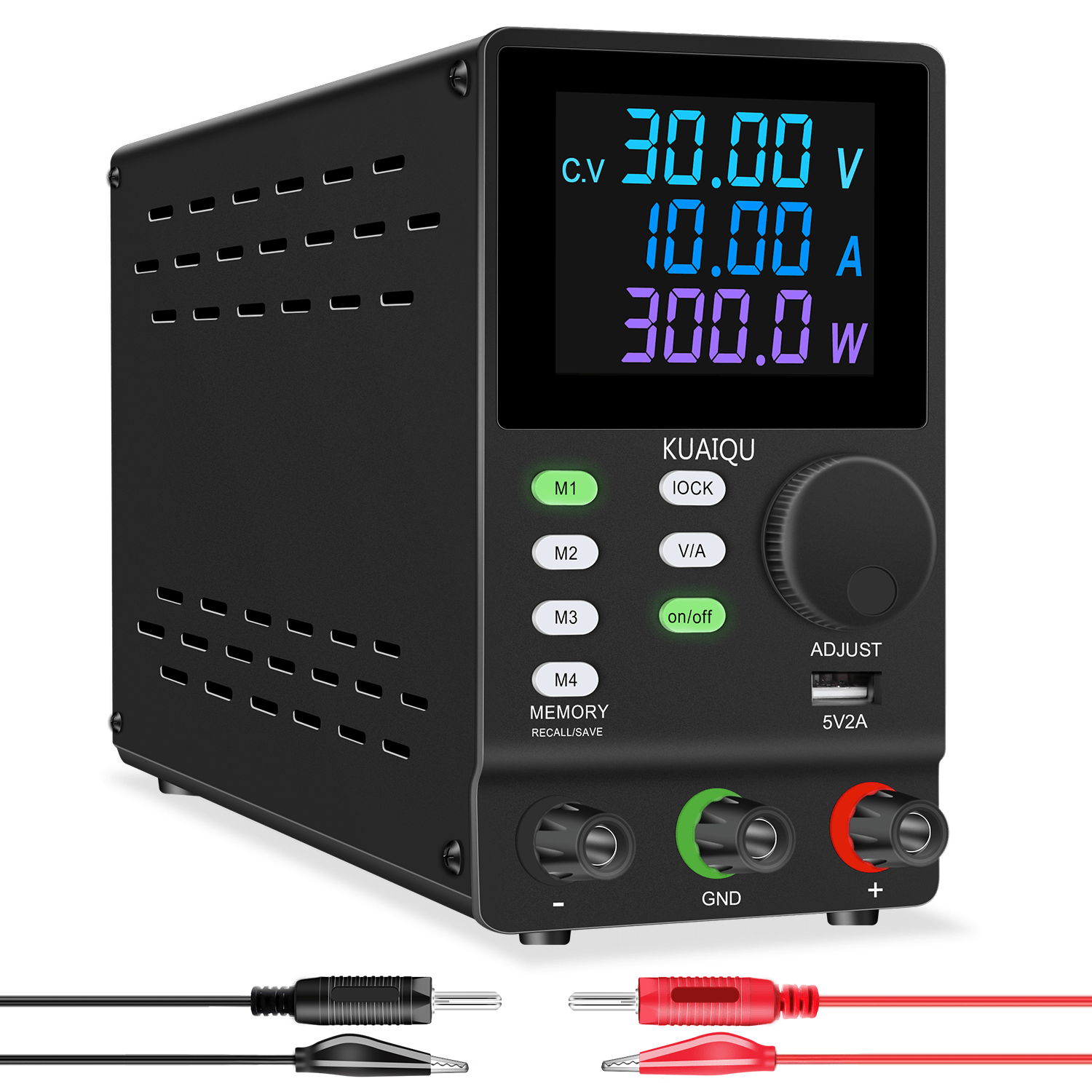

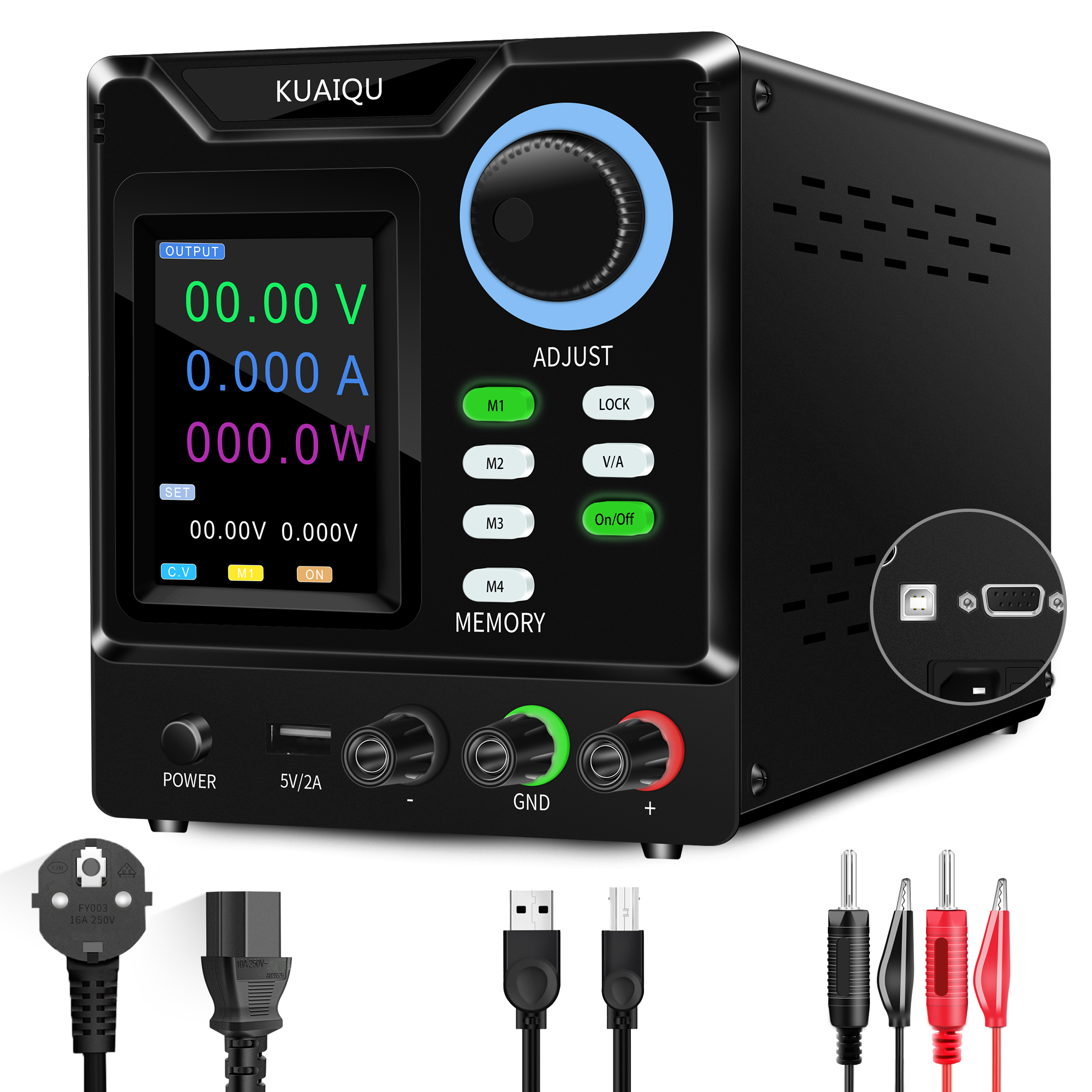

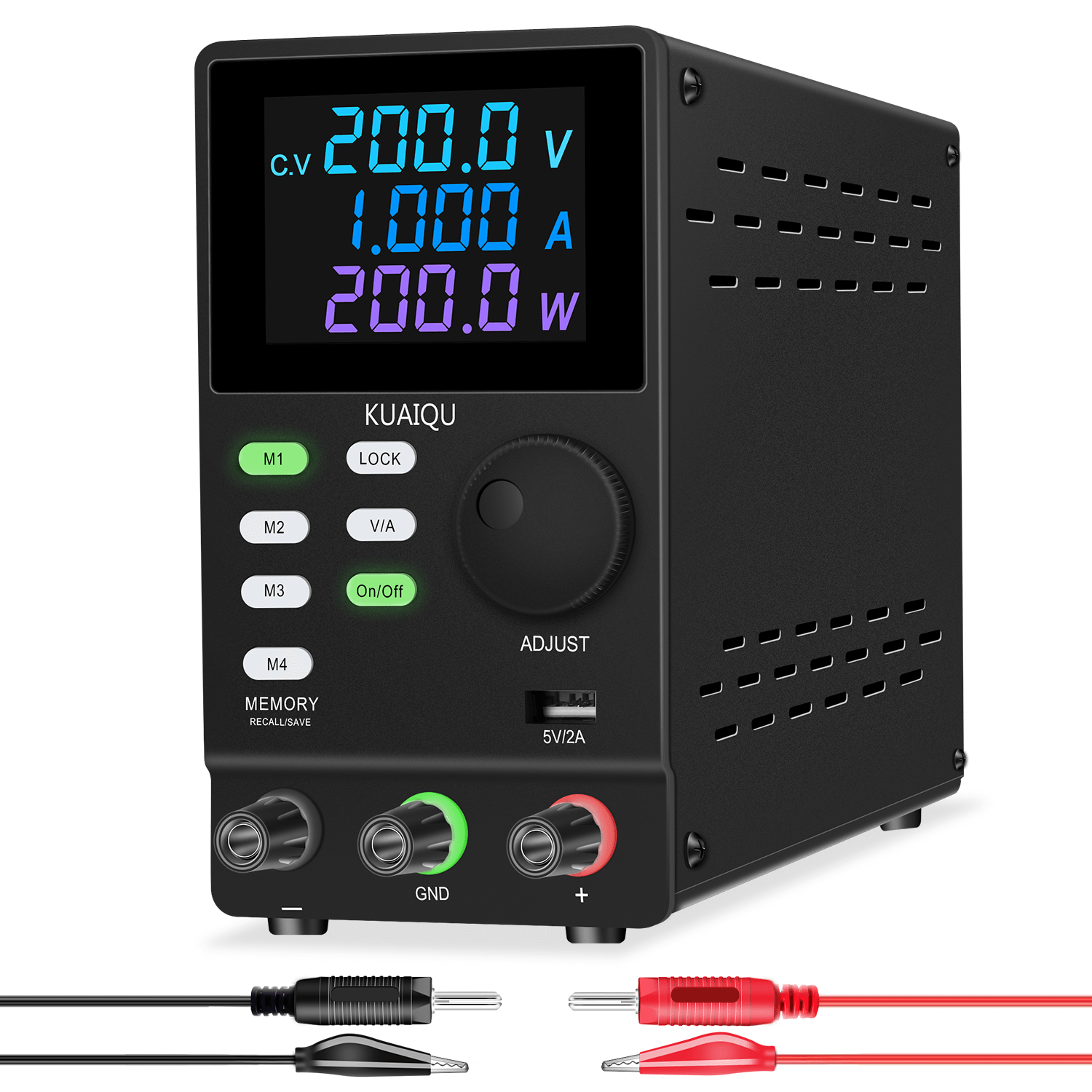

KUAIQU Variable DC Power Supply Programmable: Enhance Efficiency & Productivity

As one of the programmable power supply manufacturers, KUAIQU power supplies are crafted to boost efficiency and productivity across various applications. These DC power supplies come with programmable features, allowing users to tailor voltage and current settings according to their needs. The precision and high-resolution capabilities guarantee precise output data, meeting the specific demands of scientific research, laboratory tasks, or test simulations.

As KUAIQU continues to lead in innovation, programmable DC power supplies will persist as essential catalysts in supporting testing, research, and manufacturing endeavors.
