KUAIQU SPPS-D10001-232 1000V 1A DC regulated power supply 4 sets of storage panel lock output switch USB 5V2A encoder adjustment color LCD digital display

1. 3 groups of 4-digit LED digital displays, real-time power display, intuitive and clear.
2. 4 sets of data storage for convenient work calling.

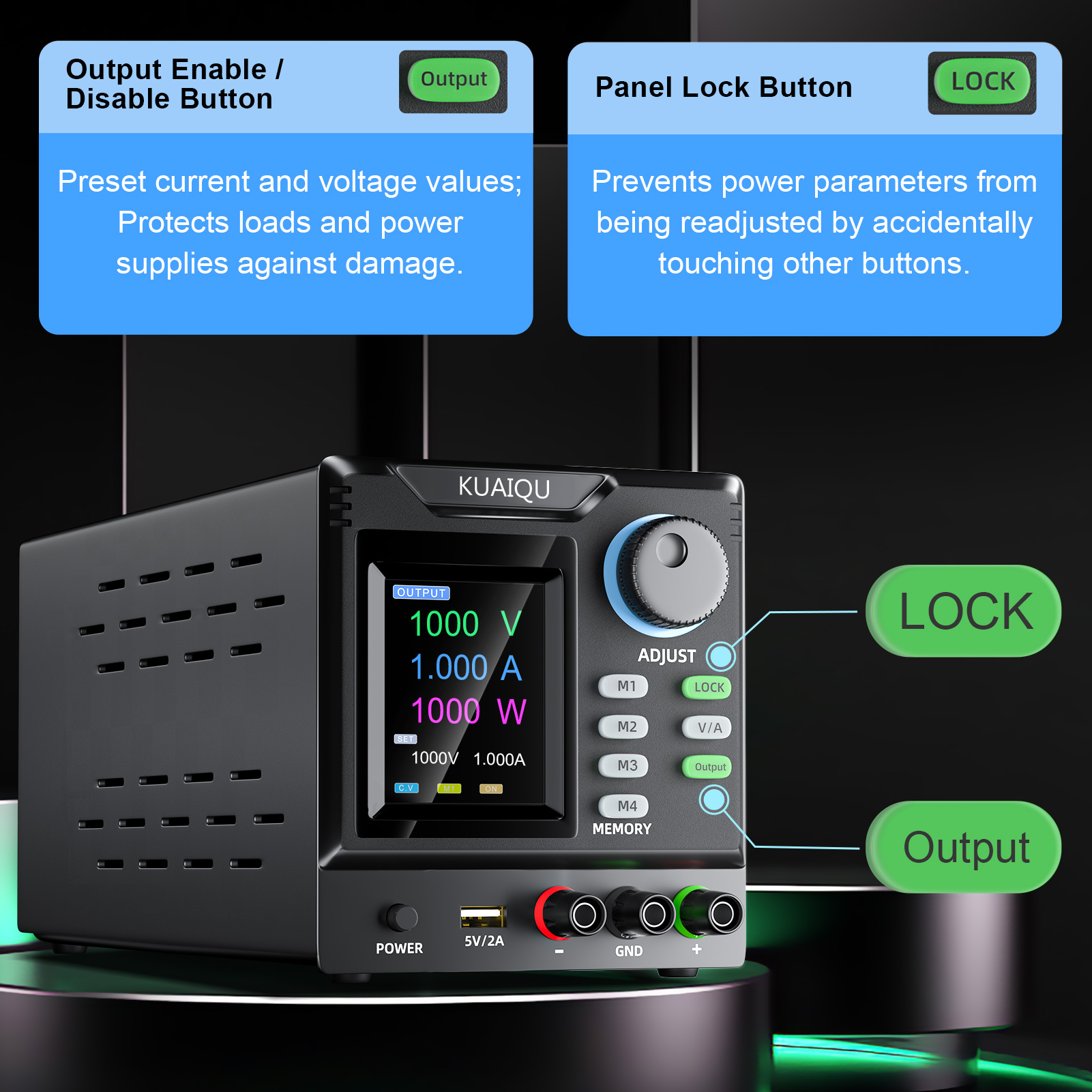

3. Panel lock function to prevent misoperation.

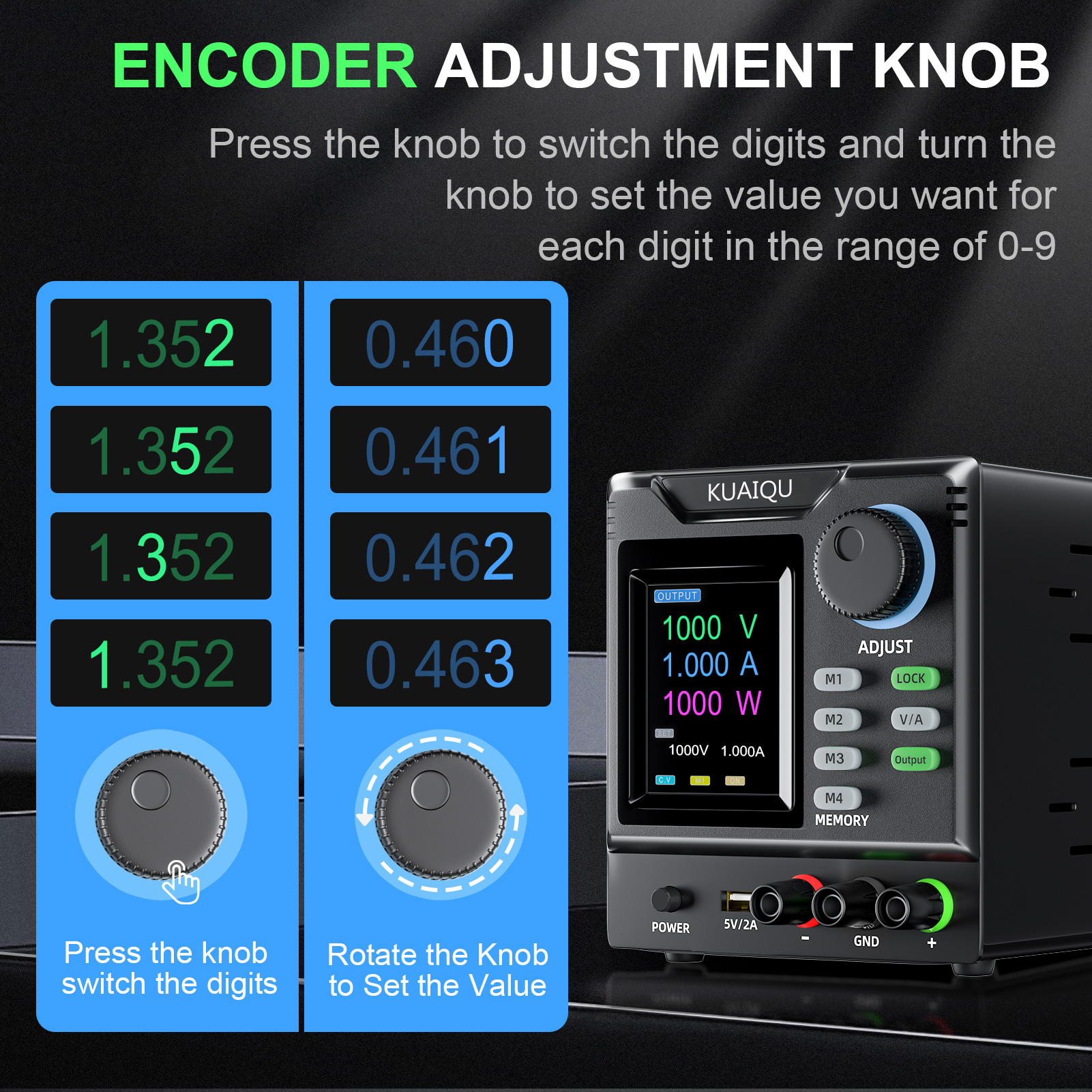

4. Use encoder knobs to adjust voltage and current to make settings more accurate.
5. Output switching function, which can preset voltage and current.
6. Horizontal chassis design fits better on the workbench and is easier to use.
7. Microcomputer temperature-controlled smart fan has excellent heat dissipation effect, effectively extending the fan life and reducing noise.
8. Designed with SMPS technology, which effectively reduces the weight of the power supply.

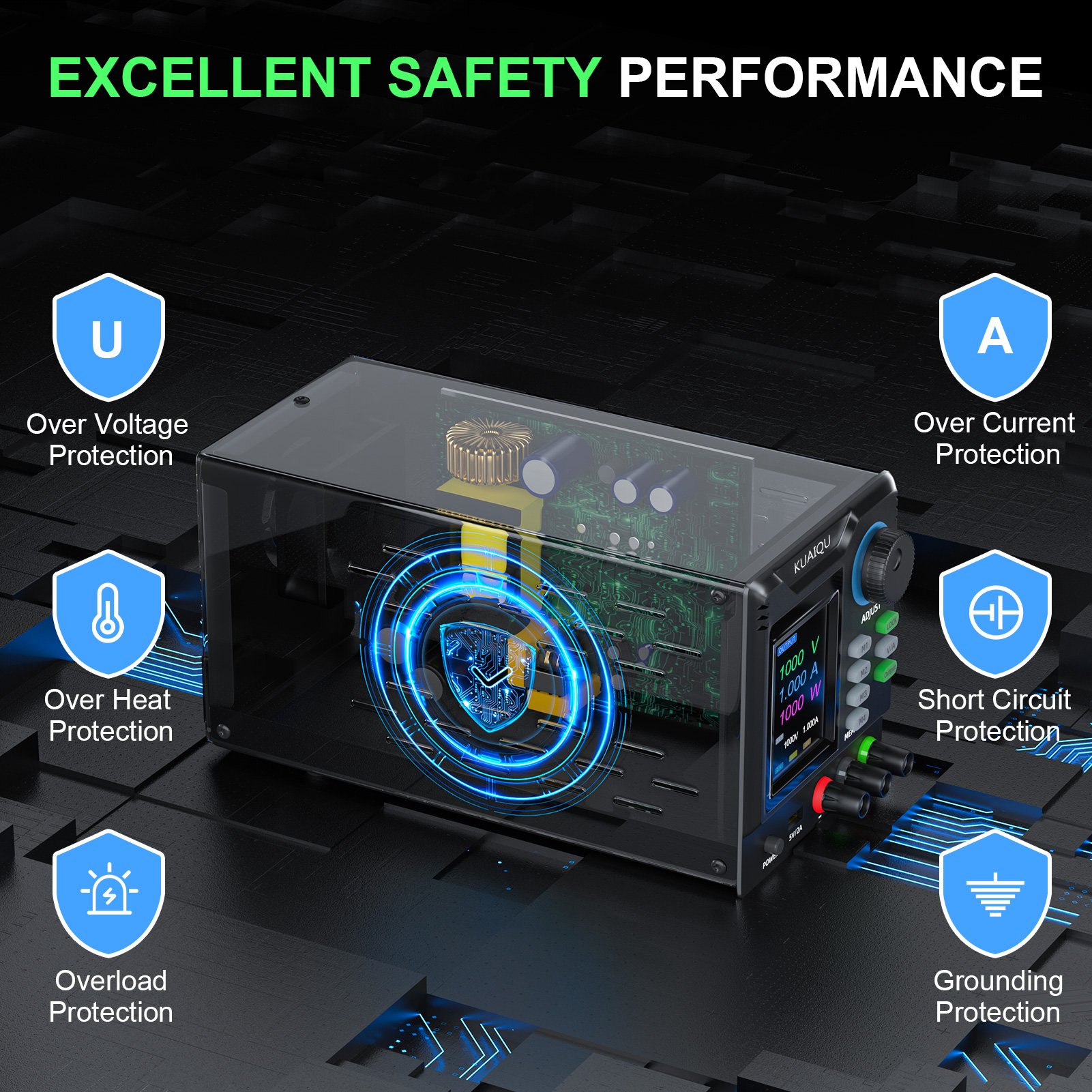

9. Multiple protection functions: overvoltage protection (OVP), overcurrent protection (OCP), overtemperature protection (OTP), overpower protection (OPP), short circuit protection.

Small size, light weight and high power density.
Constant voltage, constant current automatic switching.
voltage, current, power
Temperature controlled fan for heat dissipation, low noise and long life

Application areas
1. Production line testing.
2. Mobile phone, computer and electrical appliance repair.
3. Product aging, electroplating.
4. Charge the battery.
5. Laboratories, research and teaching.
6. All other equipment requires a DC regulated power supply.

specification:
Condition: 100% brand new
Model: SPPS-D10001-232
color: White black
Output voltage: 0-1000V
Output current: 0-1A
Voltage resolution: 0.01V
Current resolution: 0.001A
Ripple voltage: Vpp≤1%
Power impact: CV≤1%+10mV
Load effect: CV≤1%+10mV
Digital display: 4 LED digital display
Ripple noise: ≤1MV
Voltage display accuracy: ±1% + 1 digit
Current display accuracy: ±1% + 2 digits
Working environment: -10?45℃/14?113℉Rh≤90%
Storage environment: -20?60℃/4?140℉Rh≤80%
Weight: 1595g
Size: 95*220*140mm
