NICE-POWER R-SPS3020C 30V 20A Rechargeable Model OCP Function Reverse Connection Protection Buzzer Design

Small size, light weight and high power density.
Constant voltage, constant current automatic switching.
voltage, current, power
Temperature controlled fan for heat dissipation, low noise and long life

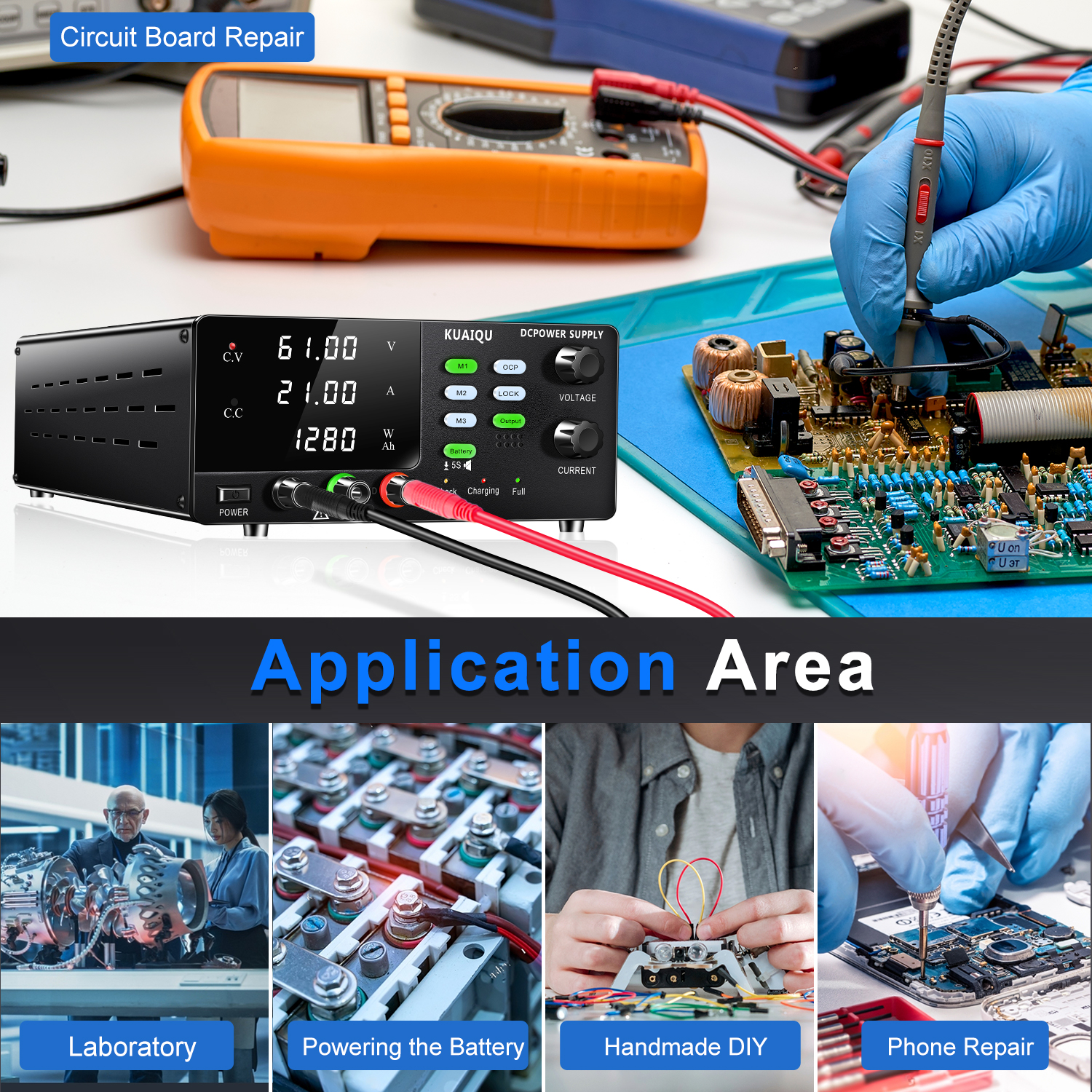

Application areas
1. Production line testing.
2. Mobile phone, computer and electrical appliance repair.
3. Product aging, electroplating.
4. Charge the battery.
5. Laboratories, research and teaching.
6. All other equipment requires a DC regulated power supply.

specification:
Condition: 100% brand new
Model: R-SPS3020C
Colour: Black
Output voltage: 0-30V
Output current: 0-20A
Voltage resolution: 0.01V
Current resolution: 0.001A
Ripple voltage: Vpp≤1%
Power impact: CV≤1%+10mV
Load effect: CV≤1%+10mV
Digital display: 4 LED digital display
Ripple noise: ≤1MV
Voltage display accuracy: ±1% + 1 digit
Current display accuracy: ±1% + 2 digits
Working environment: -10?45℃/14?113℉Rh≤90%
Storage environment: -20?60℃/4?140℉Rh≤80%
Weight: 3300g
Size: 380*245*125mm
