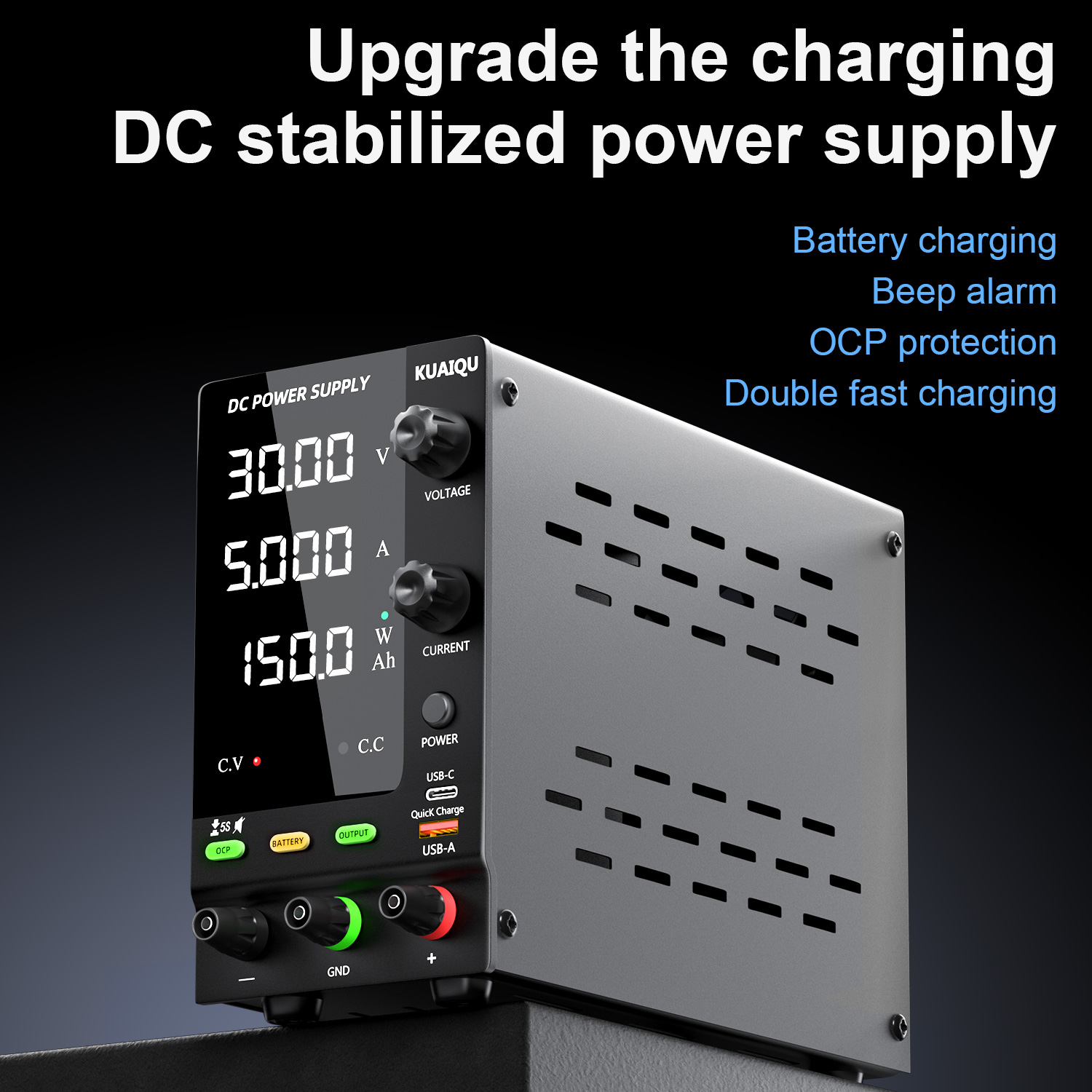

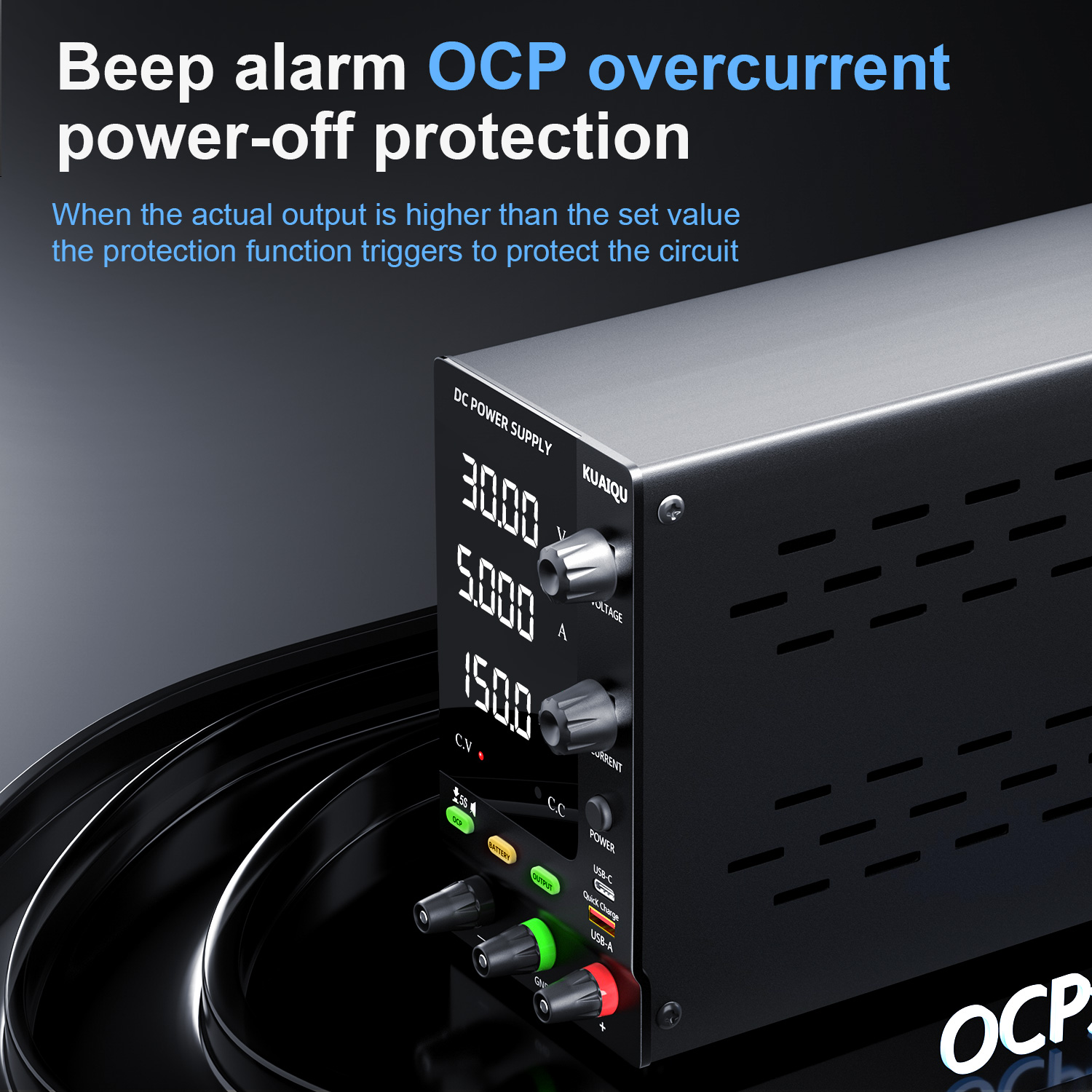

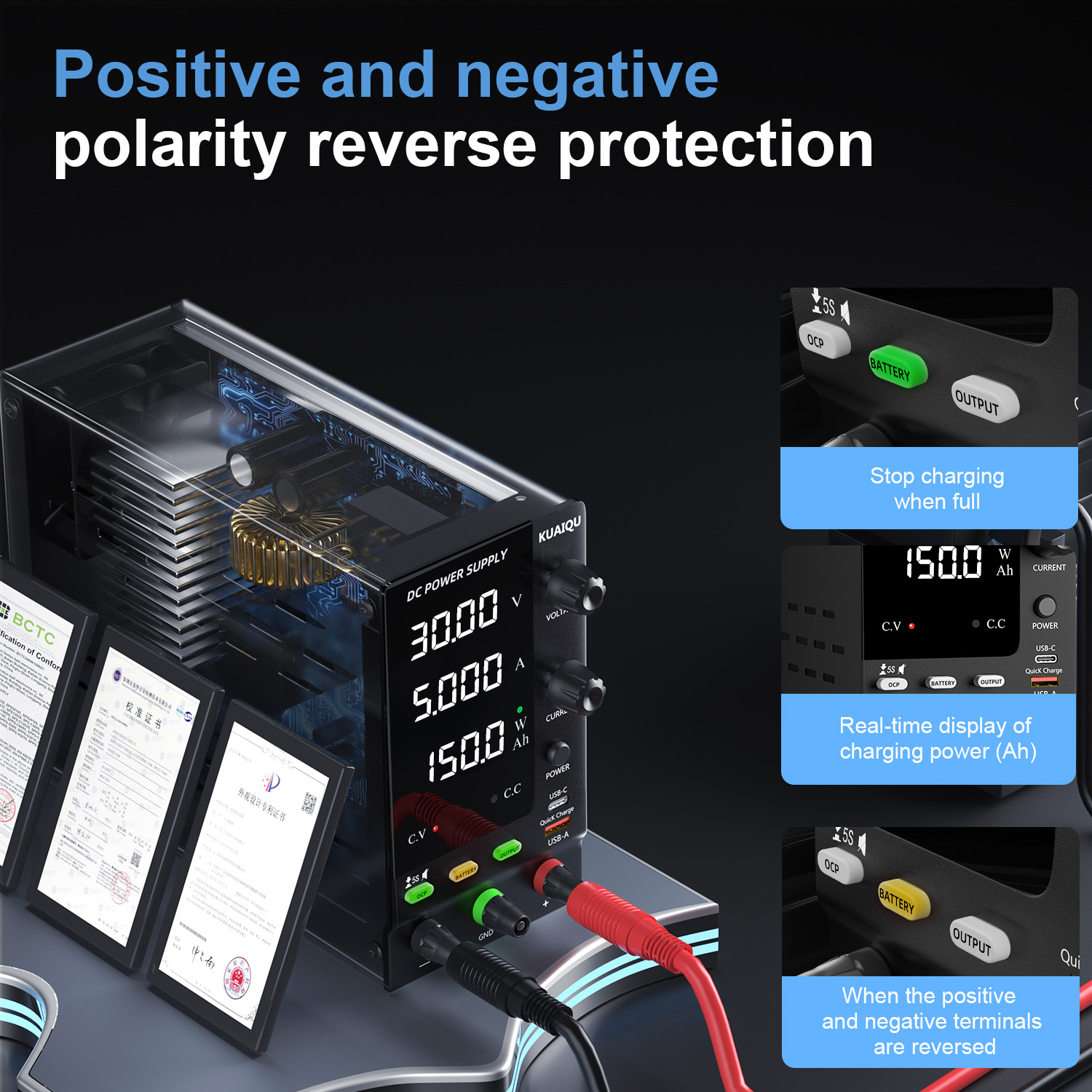

KUAIQU SPPS-C305C 30V 5A rechargeable model OCP function reverse connection protection buzzer design

Small size, light weight and high power density.
Constant voltage, constant current automatic switching.
voltage, current, power

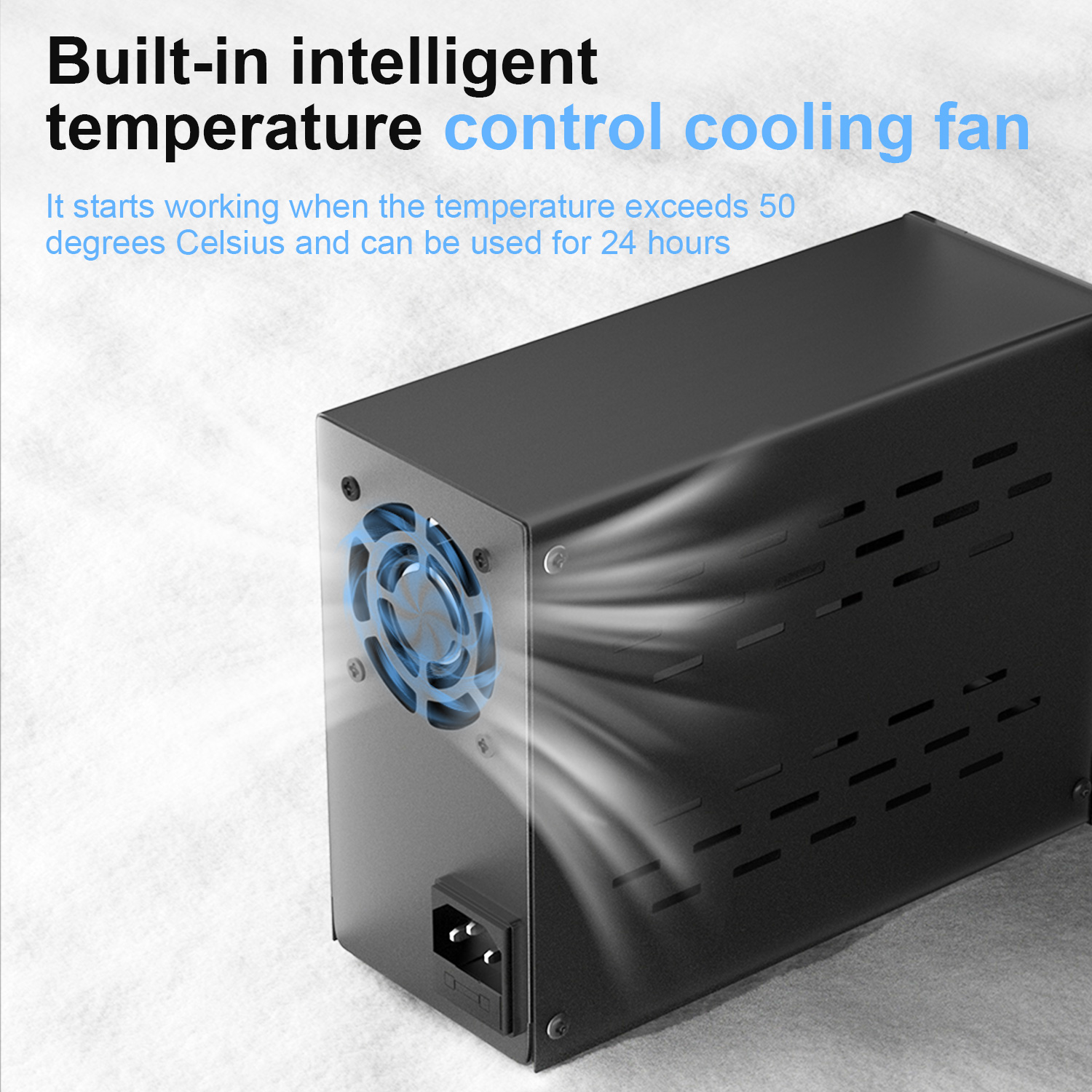

Temperature controlled fan for heat dissipation, low noise and long life

Application areas
1. Production line testing.
2. Mobile phone, computer and electrical appliance repair.
3. Product aging, electroplating.
4. Charge the battery.
5. Laboratories, research and teaching.
6. All other equipment requires a DC regulated power supply.

specification:
Condition: 100% brand new
Model: SPPS-C305C
Colour: Black
Output voltage: 0-30V
Output current: 0-5A
Voltage resolution: 0.01V
Current resolution: 0.001A
Ripple voltage: Vpp≤1%
Power impact: CV≤1%+10mV
Load effect: CV≤1%+10mV

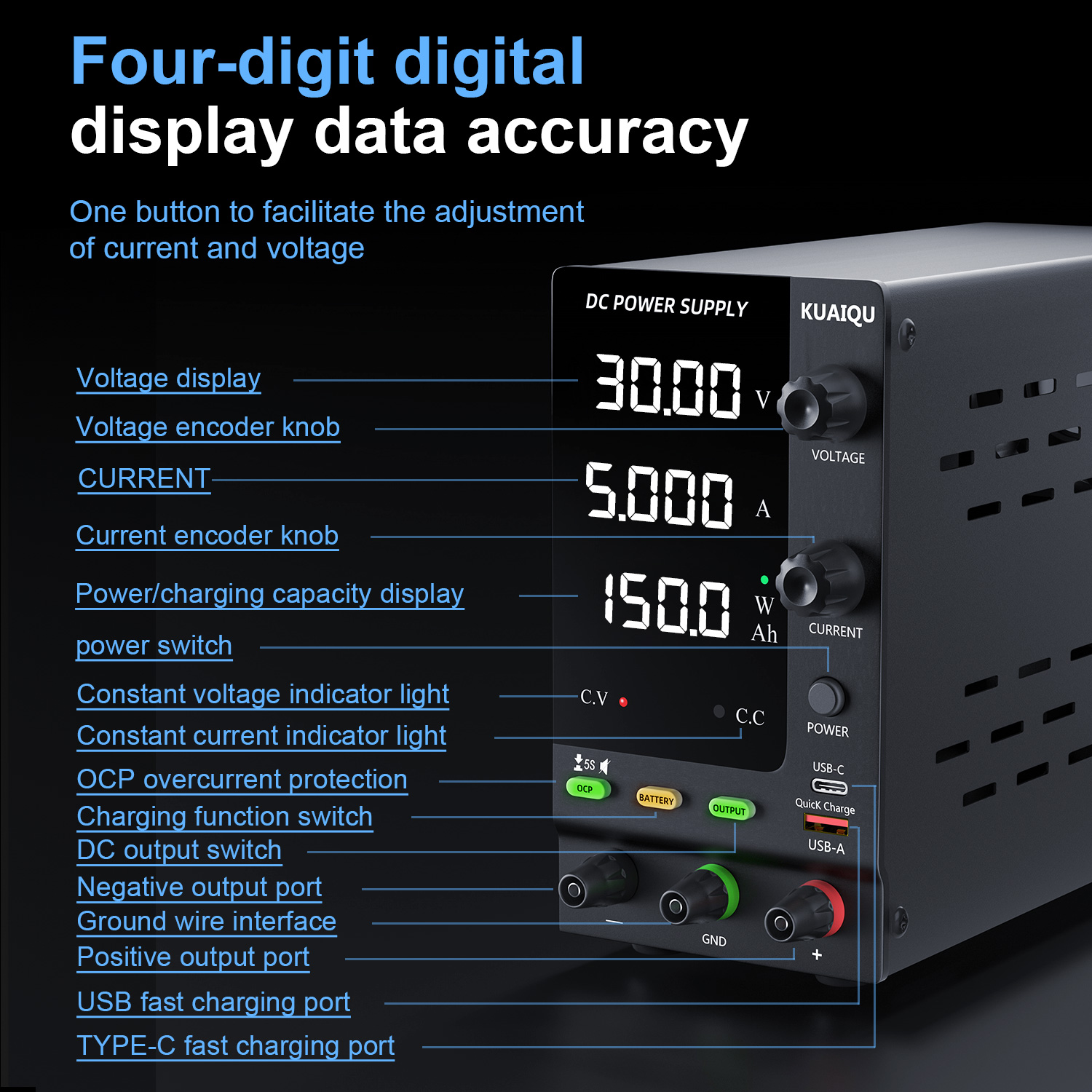

Digital display: 4 LED digital display
Ripple noise: ≤1MV
Voltage display accuracy: ±1% + 1 digit
Current display accuracy: ±1% + 2 digits
Working environment: -10?45℃/14?113℉Rh≤90%
Storage environment: -20?60℃/4?140℉Rh≤80%

Weight: 1700g
Size: 310*130*210mm
