KUAIQU 400V 600V 800V 1000V Programmable High Voltage DC Power Supply for Solar Storage, Industrial Robots

ꄱPrevious： KUAIQU Dual-Channel Power Supply with 4 in 1 Mode, Short Killer, 8 Groups Memory Presets, Negative Voltage for DC Motor ScenariosKUAIQU Dual-Channel Power Supply with 4 in 1 Mode

ꄳNext： KUAIQU KQ7901-80-20 80V 20A 400W Programmable DC Power Supply, 5-Digit Display, 100 Groups Storage, OCP OVP Protection for Lab Use

KUAIQU 400V 600V 800V 1000V High Voltage DC Power Supply Specifications

Specification	R-SPS4001S	R-SPS6001S	R-SPS8001S	R-SPS10001S
Output Voltage	0-400V	0-600V	0-800V	0-1000V
Output Current	0-1A	0-1A	0-1A	0-1A
Max Power	400W	600W	800W	1000W
Working Temperature	-10°C ~ 40°C	-10°C ~ 40°C	-10°C ~ 40°C	-10°C ~ 40°C
Storage Temperature	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C
Relative Humidity	≤80% RH	≤80% RH	≤80% RH	≤80% RH
Voltage Stability	≤0.5% +20mV	≤0.5% +20mV	≤0.5% +20mV	≤0.5% +20mV
Load Stability (CV)	≤0.5% +2mV	≤0.5% +2mV	≤0.5% +2mV	≤0.5% +2mV
Ripple Noise (CV)	≤1%	≤1%	≤1%	≤1%
Current Stability	≤0.5% +30mA	≤0.5% +30mA	≤0.5% +30mA	≤0.5% +30mA
Load Stability (CC)	≤0.5% +30mA	≤0.5% +30mA	≤0.5% +30mA	≤0.5% +30mA
Ripple Noise (CC)	≤1%	≤1%	≤1%	≤1%
Display Accuracy	1% +4 digits	1% +4 digits	1% +4 digits	1% +4 digits
Display Resolution	1V / 0.001A	1V / 0.001A	1V / 0.001A	1V / 0.001A

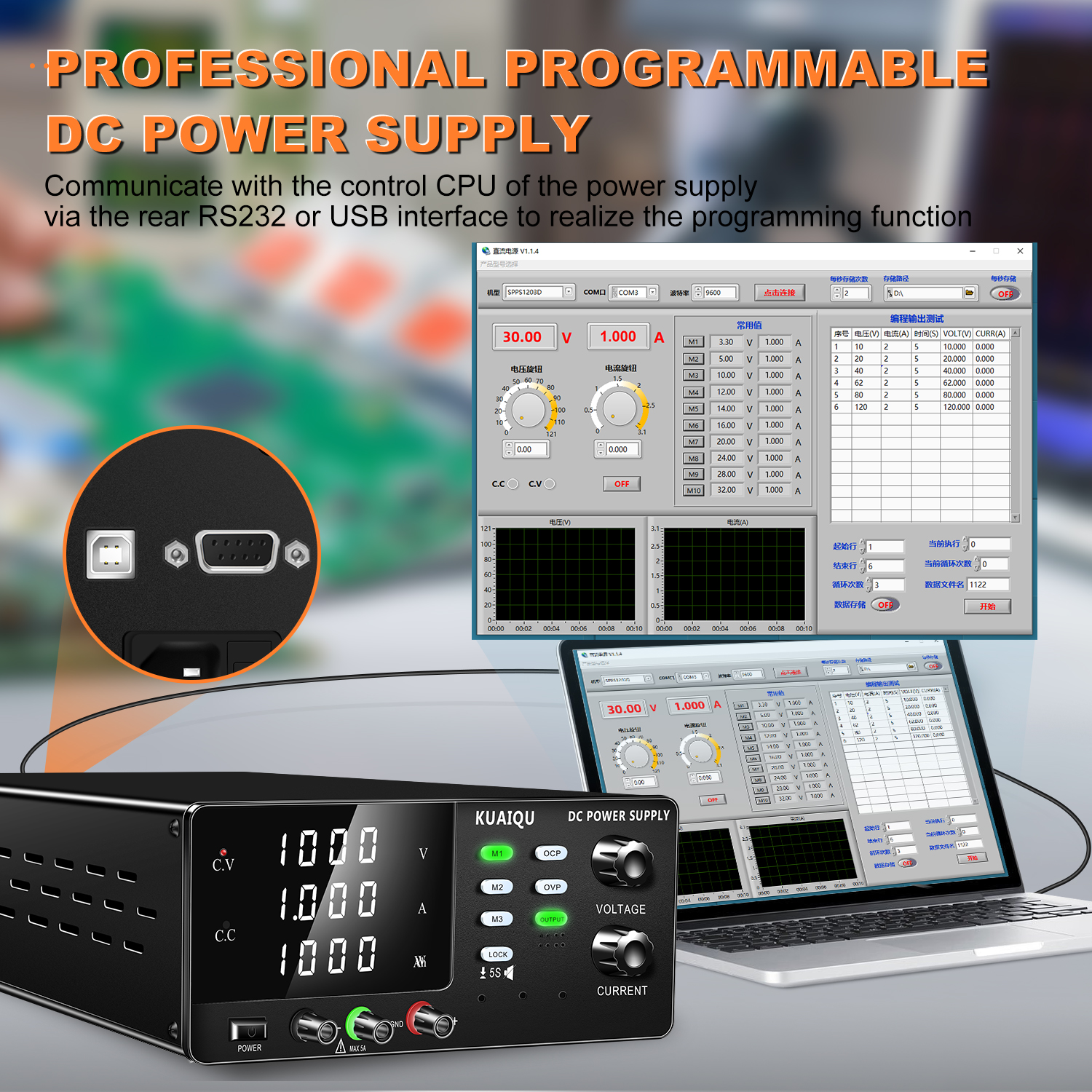

Note: If you need programmable communication interface (USB/RS232/RS485), please send us an email for special remarks separately. Email: kuaiquinstrument@163.com

High Voltage & Precision

Delivers a wide, continuously adjustable output range of 0-400V 0-600V 0-800V 0-1000V voltage and 0-1A current, meeting the demands of high-voltage testing and precision applications.

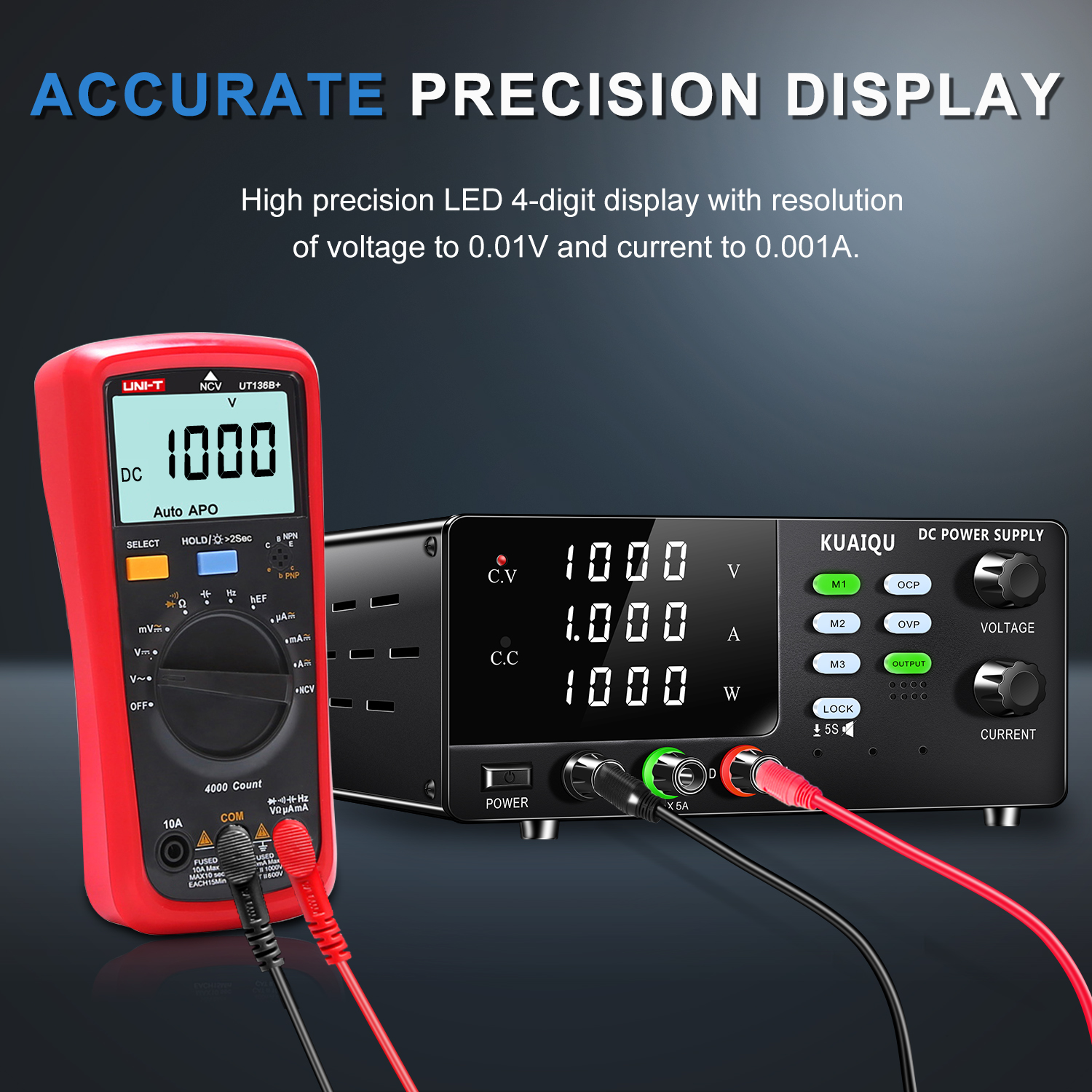

Equipped with Four-digit display that provides clear, intuitive visualization of key parameters (voltage, current, power), ensuring easy monitoring and operation.

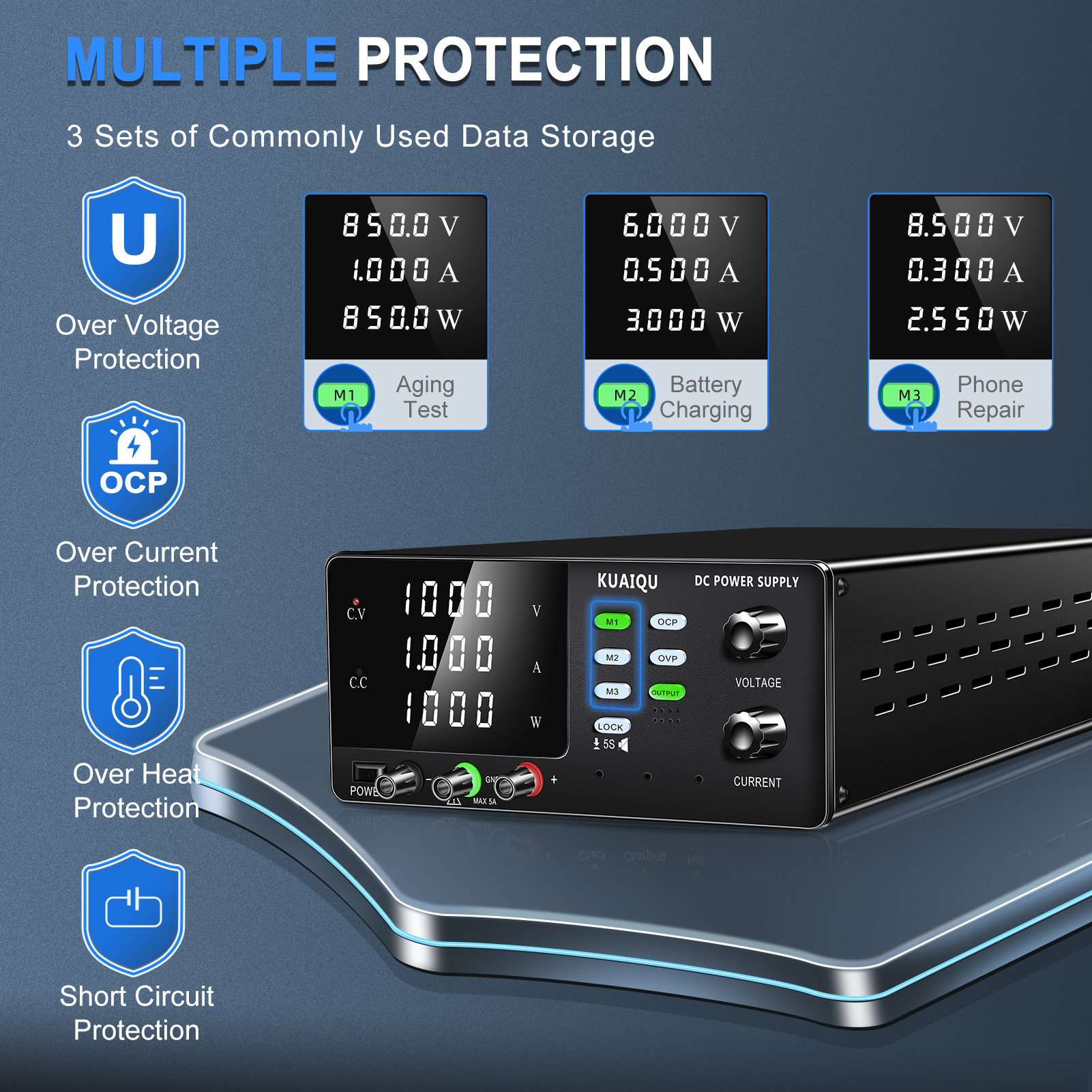

3 groups memory storage function to save and quickly recall preset voltage/current settings, eliminating repetitive adjustments for recurring tasks.

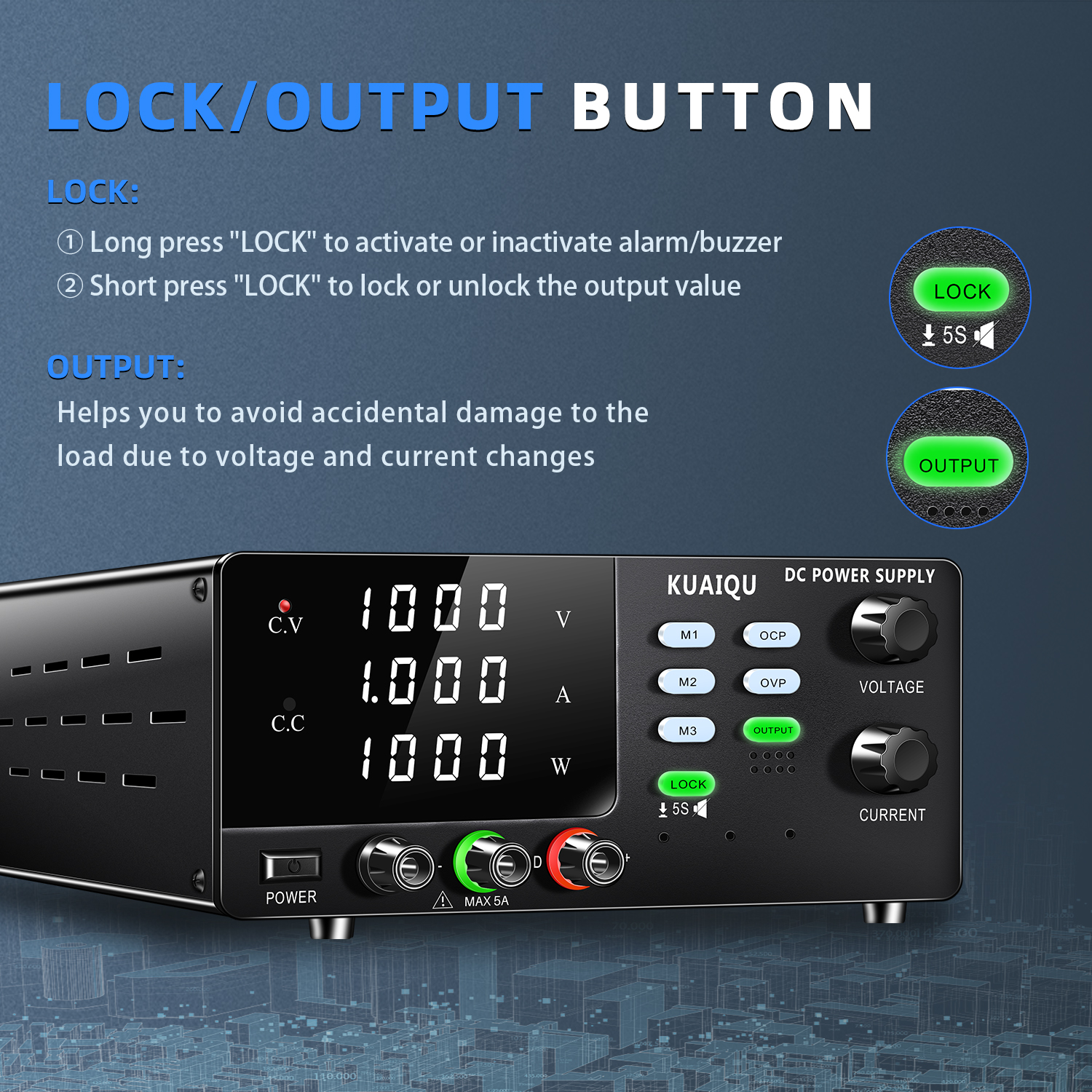

Output switch button: Allows one-touch control of power output on/off. This design prevents accidental output activation during parameter setup and enables safe disconnection without shutting down the entire device—critical for protecting sensitive components during testing.

Professional Protection & Stability

Built-in external circuit protection mechanisms to safeguard both the power supply and connected devices during operation, preventing damage from abnormal conditions.
Ensures high stability with minimal output ripple, critical for precise applications where voltage/current fluctuations could affect results.
Integrates comprehensive protection circuits (including over-voltage, over-current, and short-circuit protection) to guarantee reliable performance in demanding environments.
Panel lock button: With one press, it locks all parameter adjustment knobs/buttons to prevent accidental touches from altering preset settings. This is especially useful in multi-person workspaces or long-duration tests, ensuring consistent test conditions.

Application Fields

New Energy

Photovoltaic (Solar) Inverter Testing: Serves as a DC input source to test the conversion efficiency and stability of inverters under high-voltage DC input.
Fuel Cell Stack Testing: Simulates and tests the performance of fuel cell stacks under different voltages and currents.
High-Voltage Battery Pack Testing: Used for charge-discharge testing, performance evaluation, and aging experiments of high-voltage battery packs in electric vehicles or energy storage systems.

Electronic Component Testing & Aging

Power Device Testing: Conducts voltage withstand and breakdown characteristic tests for devices like MOSFETs, IGBTs, diodes, and TVS tubes.
Electronic Component Aging Testing: Performs long-term stability and reliability tests for capacitors, resistors, insulators, and other components under high voltage.

Laboratory & Scientific Research

Plasma Experiment: Provides stable high-voltage power supply for plasma generators, ion sources, and other equipment.
Material Breakdown Testing: Tests the breakdown voltage and leakage characteristics of insulating materials, coatings, and films under high voltage.

Quality Check and Terms of Service

Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
The bench power supply is made of high quality electronic components and is FCC and CE certified to provide reliable and stable performance and effectively extend product life.
All DC power supplies and accessories are inspected before shipment to ensure good quality.
